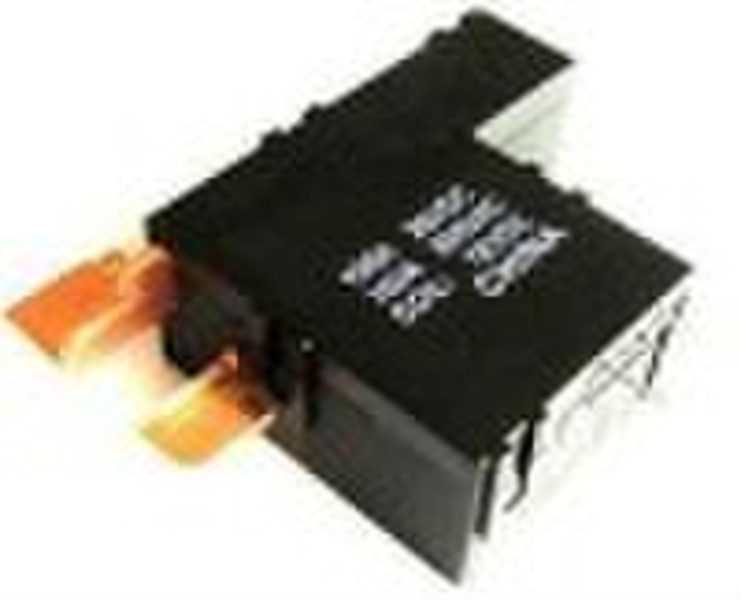

PQ42G Relay
jacky liu
Contact person
Basic Information
| Place of Origin | Shanghai China (Mainland) |
|---|---|
| Brand Name | PQ |
| Model Number | PQ42G |
| Theory | Electromagnetic Relay |
| Protect Feature | Epoxy |
| Contact Load | Low Power |
Basic data Dimensions(mm) 52.5*43.2*22.2 Contact Arrangement 1A. 1B Contact material Sliver Alloy Max Switching Current 100A,120A Max Switching Voltage 110VDC/250VAC Max Switching Power 2400W/20000VA Specifications data Coil rated voltage 5-48VDC Coil power Single:2.25W,Double:4.5W Set voltage ≤80%(rated voltage) Reset voltage ≤80%(rated voltage) Voltage pulse width ≥50ms Set/ reset time ≤30/30ms Contact bounce time ≤5ms Contact resistance ≤2mΩ Insulation resistance ≥1000MΩ Dielectric strength Between open contacts ≥1500VAC Between oil& contacts ≥2500VAC Ambient temp -40 +70°C Life Electrical(operation) Normally 1*104 Particularly 3*104 Mechanical(operation) 1*106
Delivery terms and packaging
Packaging Detail: carton Delivery Detail: within 1 month
Port: Shanghai
